Overview

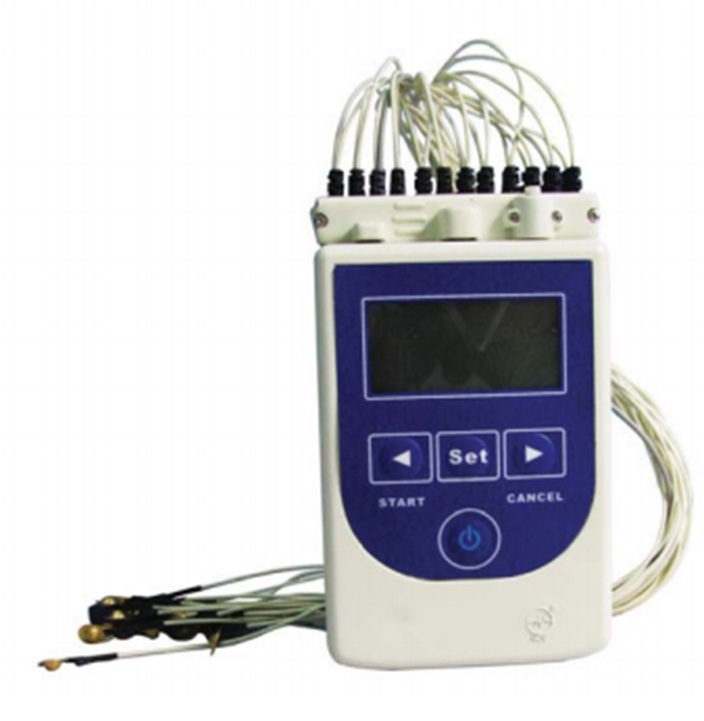

EEG Machine KEEG-A100 is a 20 channel EEG system which performs recording, monitoring, acquisition and storage of cortical electrical activities to track brain wave patterns. Supports real-time EEG waveform recording and display. Compact continuous monitoring device with bluetooth as well as USB connectivity for data transmission. Combined display of configuration chart and channel configuration source simplifies channel editing.

Specifications :

Input channel	(19 Monopolar EEG and 1 Bipolar ECG)
Recording modes	Real-time (via Bluetooth) / Dynamic (via Flash memory)
Sampling Rate	128, 256, 512 Hz
A/ Converter	12 bit
Electrodes	Single-shielded electrodes with touch proof connectors
USB Interface	USB 2.0/ USB 1.1
Hours of operation	72 hours continuous operation
Input impedance	≥10 MOhm
Low-pass filter	1 Hz ~ 60 Hz arbitrary
High-pass filter (Time)	0.01s, 0.02s, 0.03s, 0.1s, 0.2s, 0.3s, 1s, 2s, 3s
High-pass filter (Hz)	16Hz, 8Hz, 5.3Hz, 1.6Hz, 0.8Hz, 0.5Hz, 0.16Hz, 0.08Hz, 0.05Hz
CMRR	≥100 dB
Noise	≤0.5 uVRMS
Internal memory	Built-in Flash memory card (2GB)
Operative Temperature	±10 °C ~ +50 °C
Operative Humidity	30% ~ 80%
Power supply	AC 240 V 50/60 Hz 2A
Dimensions	130 x 89 x 40 mm
Weight	250 g



Features :

• Single-shield electrodes with DIN interface
• Real-time as well as long-term monitoring
• Accurate readings and printable waveforms
• Configurations : Routine and Ambulatory (Optional)
• Connectivity : USB as well as bluetooth
• HD video/Infra-red video synchronous with EEG data (Optional)

Applications :

Used in sleep clinics, psychiatric wards and neurology departments to monitor seizure disorders, evaluate patient’s cognitive states, identify lesion sites and study the effect of drugs and psychological treatment.

Standard_Accessories :

Sr	Standard Accessories	Qty
1	Single disc electrode cable	1
2	Bracket electrode cable	1
3	Net cap	1
4	General bracket electrode cap	1

Optional_Accessories :

Sr	Optional Accessories	Qty
1	Pentagonal stand	1
2	Monochrome laser printer	1
3	Photic stimulator	1
4	HD Video system	1
5	Mountable trolley	1
6	Split-type EEG cap (23holes/51holes)	1
7	Electrode cables for split-type EEG cap	1
