Overview

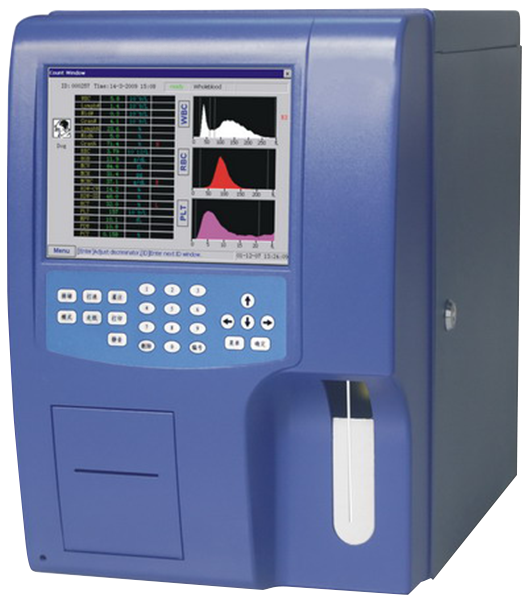

Veterinary Haematology Analyser KHA-C100 is a fully-automated multi-species 19 parameter 3-part WBC differentiation benchtop blood cell counter unit. System features high resolution color LCD display with 12 pre-defined and 4 user-defined programs (optional) for accurate species-specific analysis. Internal software enables auto reverse flush and high voltage burning, clog clearing for blockage removal.

Specifications :

Type	Fully automated 3-part differential system
Throughput	30 samples/hr
Principle of Operation	Impedance, SFT method
Accuracy (CV %)	WBC(109/L) : 2.0 % RBC (1012/L) : 1.5 % HGB (g/L) : 1.5 % MCV (fL) : 0.5 % PLT (109/L) : 4.0 %
Sample Mode	Pre-diluted Whole blood
Screen Display	High resolution large color LCD
Resolution	800 x 600
Sample Volume	Pre-diluted : 20 µL Whole blood : 9 - 20 µL
Reagents	Non-toxic cyanide-free reagents
Connectivity	RS232, USB
Printer	Built-in Thermal printer
Storage	35,000 records with 3 histograms
Operating Temperature	10 °C to 30 °C
Humidity	0.7
Maintenance	Auto reverse flush and high voltage burning, clog clearing
Power Supply	AC 100 V – 240 V, 50 / 60 Hz
Dimensions	273 × 420 × 415 mm
Weight	16 Kgs



Features :

• Throughput: 30 samples/hr
• Parameters : WBC, GRA#, LYM%, MON%, NEU%, BAS%,EOS%,#LYM,#EOS,#MON,#BAS, RBC, HGB, MCHC, MCH, MCV, PDW, RDW-CV, RDW-SD, HCT, PLT,MPV, P-LCR, PCT and PLCC with 2 Histograms for WBC, RBC and PLT and 4 scatter grams for WBC differential
• Performs 19 parameter testing with 3 histogram
• Non-toxic cyanide-free method for HGB
• Sample modes : Whole blood and Prediluted
• 12 Pre-defined species-wise programs with 4 programmable settings
• Suitable for 7 species including Canine, Feline, Equine, etc
• RS232 and USB connectivity for data transfer
• Alert alarms as per species selected
• Soft touch-key user panel
• Stores up to 35,000 patient records
• Built-in Thermal printer
• External Printer (Optional)

Applications :

Used in veterinary diagnostic clinical laboratories and hospitals to characterize blood cells, determine cell count and cell volume for in-vitro species-specific pathological diagnosis of blood samples to meet qualifying performance requirements and standardized results.
