Overview

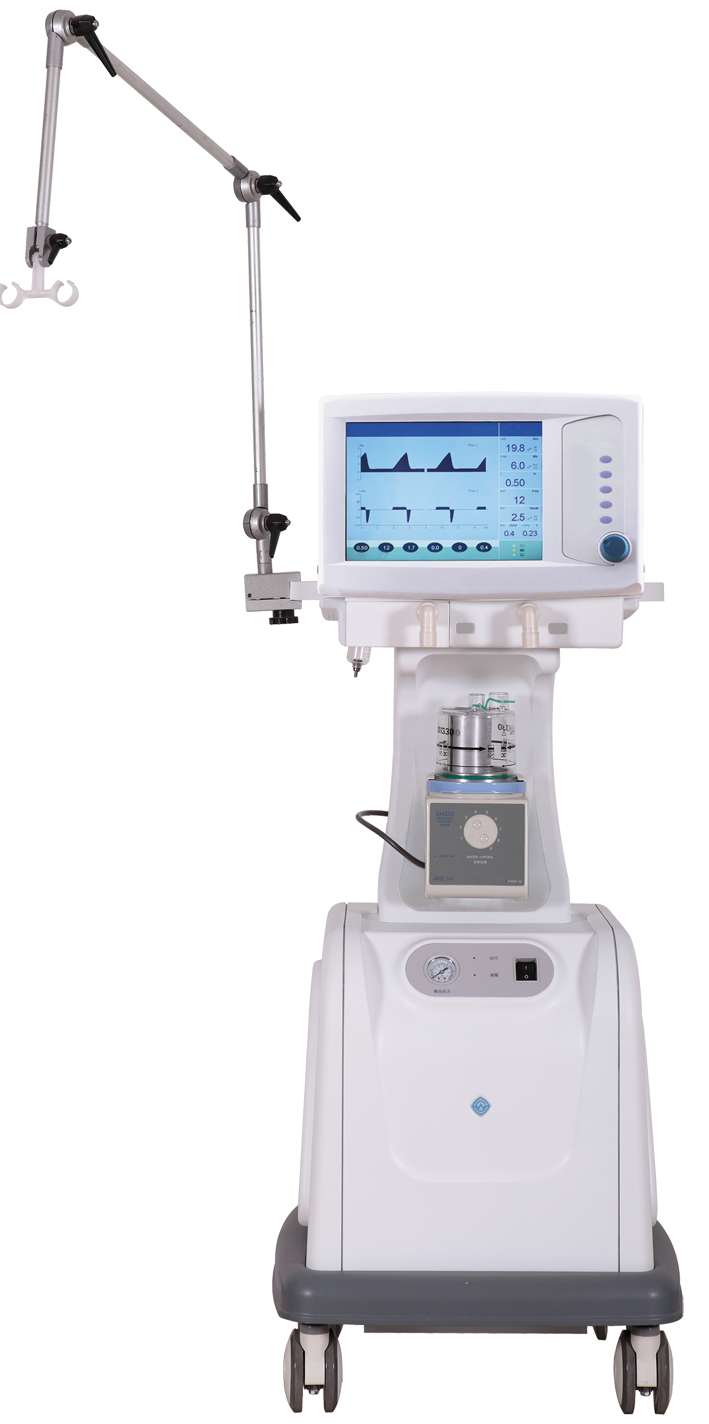

Intensive Care Ventilator KVI- A101 is a respiratory ventilator unit for invasive artificial respiration. Built-in provision for self-testing and calibration. The device is made up of high configuration intelligent control system that allows changes to be made according to user requirements.

Specifications :

Tidal Volume	20 ml ~ 500 ml
Standard Ventilation Mode	VCV, SIMV, PSV, PCV, CPAP, Manual, SIGH
Application	Adult/ Pediatric Invasive
Pressure Range	5 mbar ~ 80 mbar
Respiration rate range	1 bpm ~ 99 bpm 1 bpm ~ 40 bpm under SIMV
I:E Ratio	4:1 to 1:8
Oxygen Concentration	21 % ~ 100 %
Pressure trigger Range	-20 to 20 cmH2O
PEEP Type	Integrated, Electronic Control
PEEP Range	0 to 30 cmH2O
Gas Supply	O2, Air ( 280 kPa ~ 600 kPa )
Alarm	Visual : No tidal volume, MV, Paw, FiO2 limitation O2, Air failure, AC power failure, low back up Audio: No tidal volume, MV, Paw, FiO2 limitation
Display	12.1” Color LCD
Graphic Display	Waveforms of P-T, F-T, V-T
Operating Temperature	5 °C ~ 40 °C
Storage Temperature	-10 °C to 40 °C
Relative Humidity	≤ 80 %
Atmospheric Pressure	96 kPa ~ 104 kPa
Battery	Lead acid 12V, 4Ah (120 mins run time)
Output Pressure	0.4 mPa ± 0.1 mPa
Noise	≤ 50 dB
Power Supply	AC 220 V ± 10 %, 50 Hz ± 2 %
Dimension	450 x 550 x 1400 mm
Weight	65 kgs



Features :

• Large screen display for parameter visualization and control
• Desirable display color schemes
• Self-testing and calibration
• Air compressor support (Optional)

Applications :

Used in operating rooms, surgical care wards, intensive care unit, and other departments for pulmonary life-support during acute lung injury or respiratory distress which result in inadequate oxygenation or ventilation inability to protect the airway fluids.
