Overview

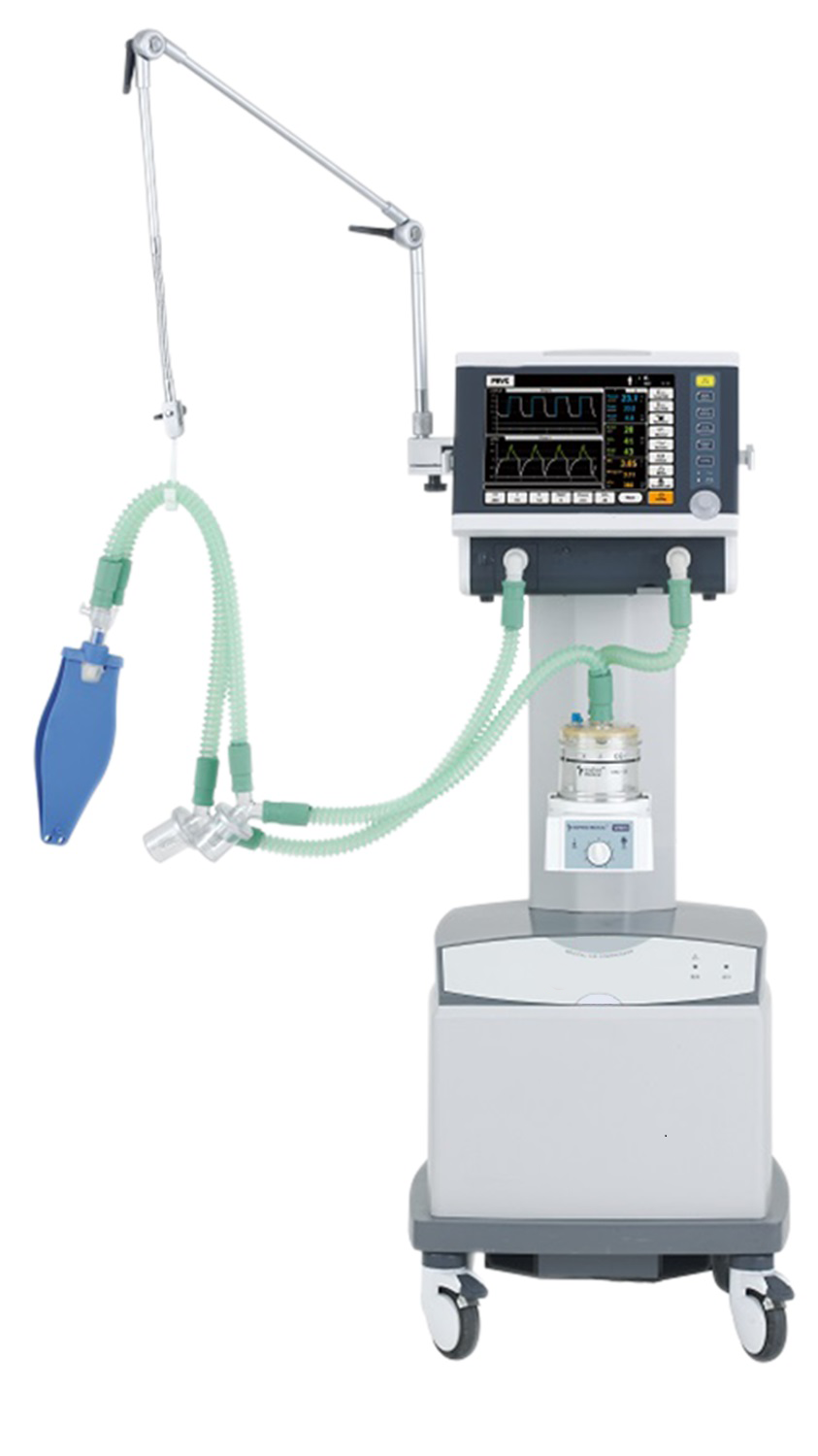

Intensive-Care Ventilator KIV-A100 is a high performance, closed-loop controlled, pneumatically-driven critical care ventilator with multiple ventilation modes. System features high resolution detachable touch screen with navigation knob to view monitored parameters, pulmonary mechanics waveform, lung volumes, flow-volume loops and three-level audio-visual alarm system with 360-degree panoramic alert light.

Specifications :

Tidal Volume	20 ml ─ 2500 ml
Configurations	Trolley or Ceiling Pendant
Respiratory Rate	1 bpm ─ 40 bpm (V-SIMV/P-SIMV/PRVC-SIMV) 4 bpm ─ 100 bpm ( VCV/PCV/PRVC)
Psupport	0 kPa ─ 6 kPa
Pcontrol	0.5 kPa ─ 6 kPa
Pulmonary Mechanics Waveform	3
Loops	2
Standard Ventilation Modes	VCV (A/C) PCV (A/C) SIMV (VCV) SIMV(PCV) SIMV (PRVC) SPONT/CPAP NIV/CPAP NIV/PCV BIVENT
Combined Ventilation Modes	SPONT+PS SIMV(VCV)+ PS SIMV(PCV)+PS SIMS(PRVC)+PS BIVENT+PS VCV+SIGH NIV/CPAP+PS
Inspiration Time	0.1 s ─ 12 s
Inspiratory Pause Time	0 s ─ 4 s
FiO2 Range	21% ─ 100%
Trigger Sensitivity	Pressure : - 2 kPa to 0 kPa (above PEEP) Flow : 0.5 LPM ─ 20 LPM (base flow)
PEEP	0 kPa ─ 5 kPa
Suction	< 2 min
Nebulizer	30 mins
Pressure Values	Pplat / Ppeak / Pmean / PEEP
Volume / Flow values	VTI / VTE / MV / MVspont
Time Values	Ftotal / Fspont / I : E
Oxygen Monitoring	Without O2 sensor ( O2 sensor optional )
Gas Supply	O2, Air (0.28 MPa – 6 MPa)
Real-time Curves	Pressure-Time Flow-Time Volume-Time Pressure-Volume loop Flow-Volume loop
Alarm	Upper and Lower limits : MV, Paw, PEEP, Airway Pressure continuous high, VTE, Fspont high Other Conditions : Tapnea, ,Power Fail, Nebulizer, Battery low, Battery exhausted, Air supply failure, O2 supply failure, Air and O2 supply failure, Fan block, Pipe block, Circuit disconnected
Display	12.1” TFT LCD touch screen
Internal Battery	> 1 hour
Maximum Security Pressure	≤ 8 kPa
Compliance	≤ 4 ml / 100 Pa
Noise	≤ 65 dB (A)
Communication	RS232, VGA, Nurse Call
Operational Temperature	5 °C to 40 °C
Relative Humidity	≤ 90 % (non-condensing)
Atmospheric Pressure	50 kPa – 106 kPa
Power Supply	110 V – 240 V (50 Hz / 60 Hz), 65 VA
Dimensions	328 x 410 x 410 mm
Weight	20 Kgs



Features :

• Pneumatic-driven Flow
• Multiple Ventilation modes with BIVENT and PRVC Modes
• Invasive and Non-invasive Modes
• Flexible Configuration
• 15 Display Parameters
• Alarm Recording Feature
• Lung mechanics function monitoring

Applications :

Used in operating rooms, surgical care wards, intensive care unit, and other departments for pulmonary life-support during acute lung injury or respiratory distress which result in inadequate oxygenation or ventilation inability to protect the airway fluids.
