Overview

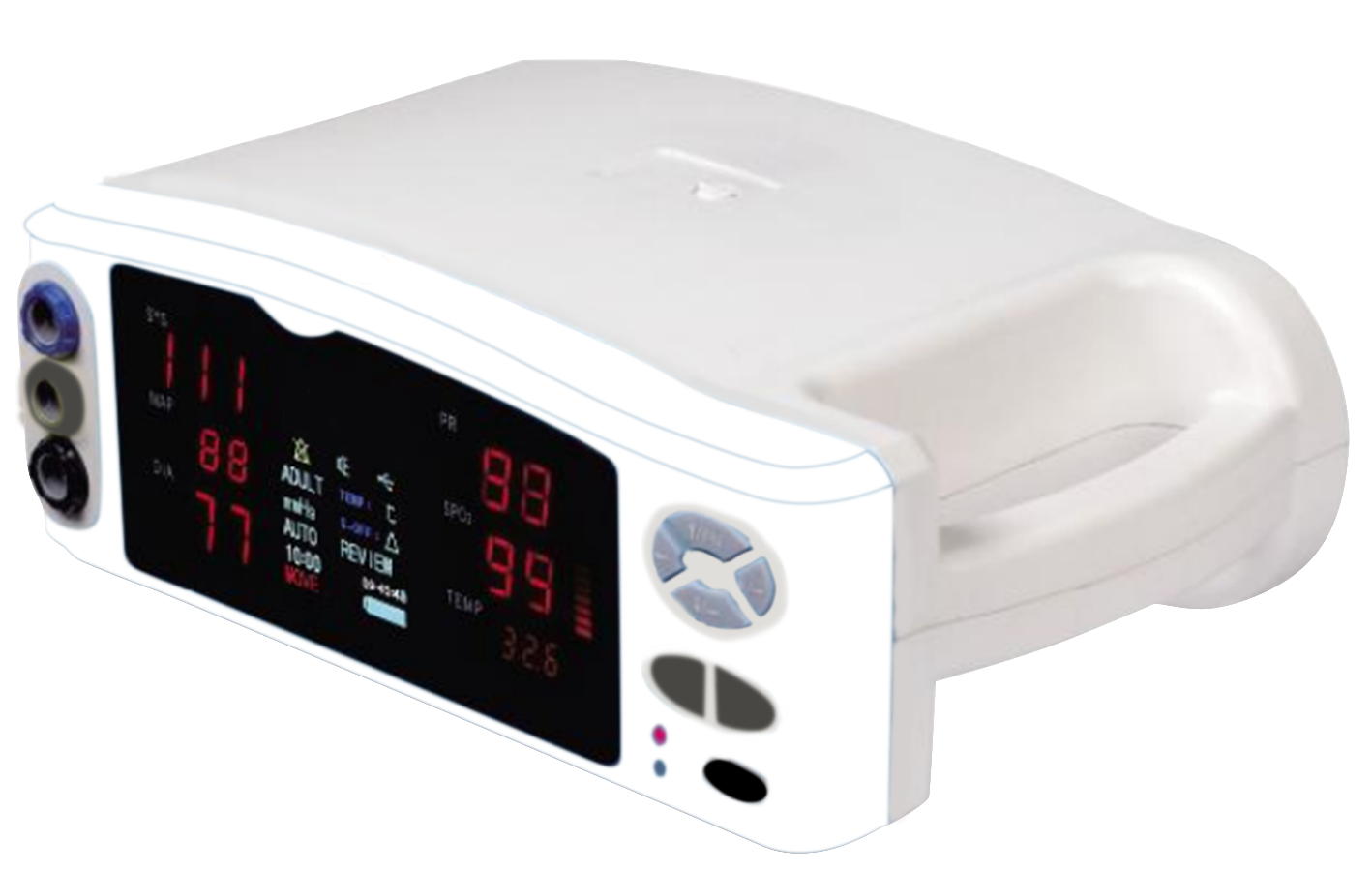

Vital Sign Monitor KPM-A100 is a four parameter compact spot check device with graphic trends to illustrate patient status. Smooth crevice-free exterior with integrated handle aids portable usage reducing cross infection. Advanced software enables instant data download and tele-monitoring.

Specifications :

Vital Parameters	Type A Type B Type C 4 Parameters (NIBP,SpO2, PR, Temp) 3 Parameters (SpO2, PR, Temp) 3 Parameters (NIBP, SpO2, PR)
Display	240 x 320 dot matrix colour TFT
NIBP Measurement range	Adult: 30-255 mmHg Paediatric: 30-160 mmHg
NIBP Mode	Auto, Manual, STAT
NIBP Parameters	SYS, DIA, MAP
NIBP interval	Auto mode: 1, 2 , 3, 5, 10, 15, 20, 25, 30, 45, 60 mins STAT mode: 5 mins
Resolution	1 mmHg
NIBP Over-pressure protection	Adult: 300 mmHg Pediatric: 22 mmHg
SpO2 Measurement range	0 - 100%
SpO2 Accuracy	±2% (90-100)%, ±3% (70-89)%, <70% (unspecified)
SpO2 Resolution	0.01
PR Measurement range	30 bpm - 250 bpm
PR Accuracy	±1 bpm
PR Resolution	1bpm
Temp Probe	Body sensitive temperature sensor
Temp Measurement range	0⁰C to 50⁰C
Temp Accuracy	± 0.1⁰C
Temp Resolution	0.1⁰C
Graphic LCD size	44 x 59 mm
Audio-visual Alarms	Sensor-off alarm, Measurement out of user-defined limits
Data Transmission	USB-based transmission to PC Internet-based tele monitoring
Operational Temperature	0⁰C to 45⁰C
Relative Humidity	15% to 95%
Pressure	86 kPa – 106 kPa
Power Supply	Input power: AC 100-240V, 50-60Hz, 0.7A Output power: 5V,2.5A
Battery	2.8 A built-in rechargeable Li-ion battery Run Time : 5 hours Charging Time : 8 hours



Features :

• 2.8-inch screen display
• Automatic shut-down and stand-by
• Trend review up to 3888 groups
• Audio-visual alarm system
• Tele monitoring and USB connectivity
• Battery status indicator

Applications :

Used in OPD, diagnostic centers, emergency wards, first-aid and rescue ambulatory care intended for spot checking, non-invasive monitoring or recording of vital body parameters.
