Overview

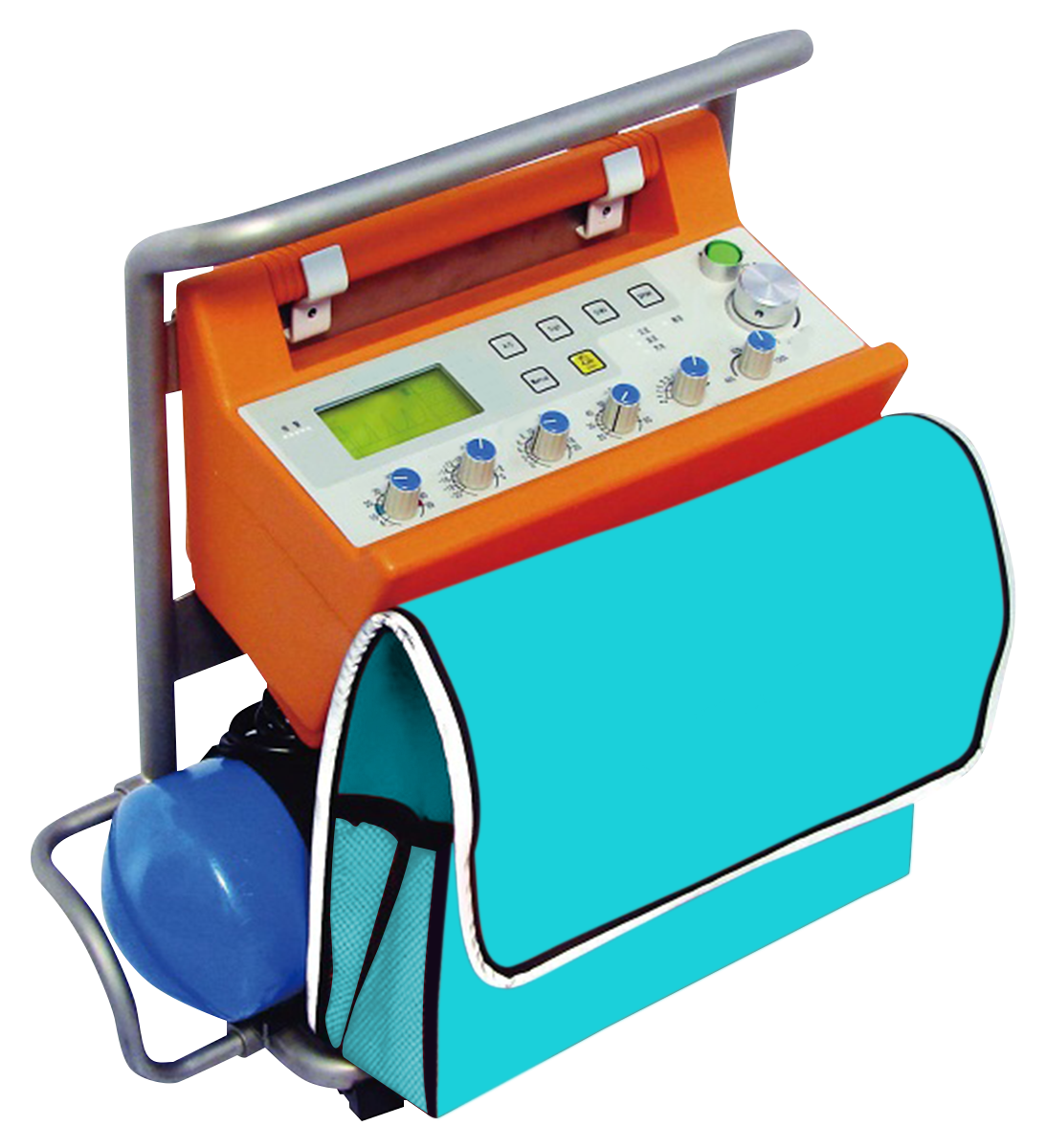

Transport Ventilator KTV-A100 is a high-end portable transport ventilation system equipped with mobile stand, oxygen cylinder and inbuilt clamps to be fastened for secured and easy transportation. Extensive ventilation assistance with real-time trends, lung mechanics ensures high-end performance to achieve best delivered care.

Specifications :

Tidal Volume	0 ml – 1500 ml
Gas Supply	O2, 0.28 to 0.6 MPa
Ventilation Modes	A/C, SIMV, SPONT, Manual, VCV+SIGH
Respiratory Rate	4 bpm – 40 bpm (SIMV) 4 bpm – 99 bpm (A/C)
Range Of I:E Ratio	2:1 to 1: 4
FiO2 Range	48% to 100%
Pressure Sensitivity	Above PEEP: - 2 kPa to 0 kPa PEEP: 0.5 kPa to 2 kPa
Pressure Parameter	Ppeak
Volume/Flow Parameter	Vt , MV
Time Parameter	Ftotal
Real-Time Curves	Pressure-Time
Compliance	< 4 ml/100 Pa
Cylinder Capacity	3.2 L
Max. Pressure	< 6 kPa
Battery Life	4 Hours of Uninterrupted Battery life
Environmental Temperature	Operation: -10°C to 50°C Storage: -20°C to 55°C
Relative Humidity	Operation: < 85 % Storage: < 93 %
Atmospheric Pressure	Operation: 70 kPa – 110 kPa Storage: 50 kPa – 110 kPa
Power Supply	110 V - 220 V, 50/60Hz , < 65 VA
Dimensions	175 x 170 x 300 mm
Weight	3.5 Kgs



Features :

• Turbine-driven ventilation technology
• Combined mode : VCV + SIGH
• CPAP based backup ventilation
• Durable and high-impact housing

Applications :

Used in ambulances or outdoor patient transfer, ideal for acute-care airway ventilation for inter-hospital, intra-hospital, or prehospital emergency transport etc.
