Overview

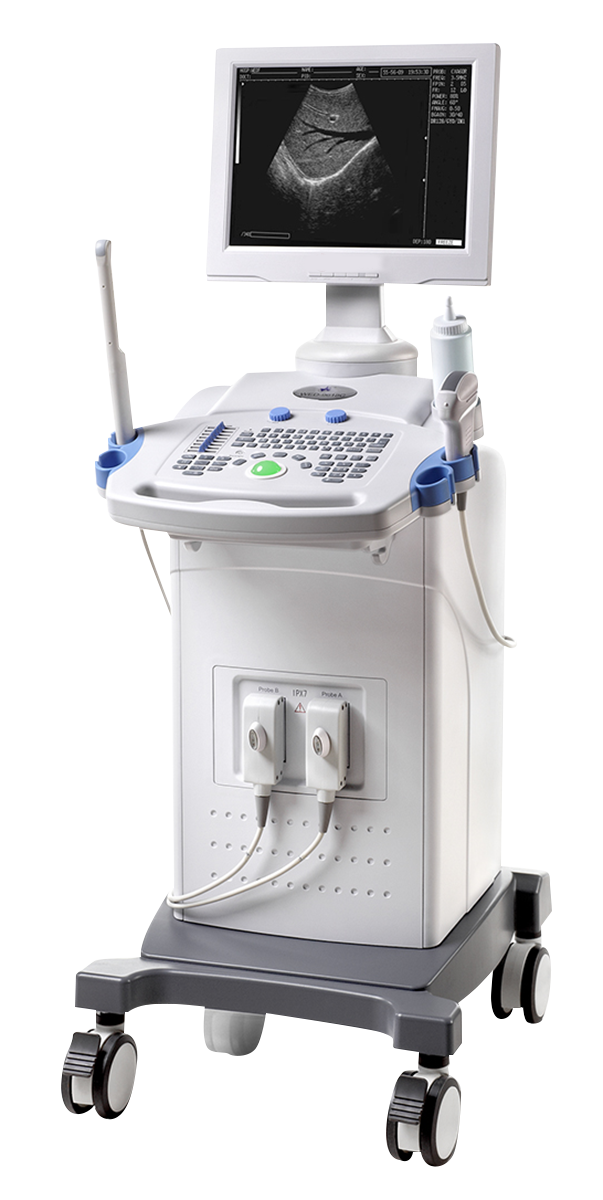

Ultrasound System with Trolley KUS-A100 is a cart-based B/W digital ultrasound imaging system equipped with 15” LCD screen and core features such as digital beam-forming, ultrasonic frame-forming, real-time dynamic aperture control, advanced frequency scan, dynamic focusing for efficient measuring and spot-analysis of the body area under study.

Specifications :

Display size	15-inch LCD screen
Display depth	250 mm
Ultrasound modes	B, B+B, B+M, M, 4B
TGC	Total gain, 8 segment TGC
Depth adjustability	16 level of real-time depth adjustments
Probe scan methods	Convex, Linear, Micro-convex
Cine-loop	≥ 400 frames
Frame storage	≥ 32 permanent storage frames
Image formats	BMP, JPG, DCM, TIF
Body marks	40 types
Zoom	2 times in real-time and frozen
Output interface	Video, RS-232, USB 2.0
Dimensions	570 x 710 x 1240
Weight	60 Kgs



Features :

• Scan-angle adjustability
• Suitable for general, obstetric, cardiac
• Automatic report generation(Normal/OB)
• Multi-operational imaging workstation
• Automatic Probe identification

Applications :

Used in examination rooms, consultation clinics, primary healthcare centers and rescue ambulance or outdoor examinations for point of care ultrasonography imaging for symptomatic examination and diagnosis at patient’s bedside.

Standard_Accessories :

Sr.	Standard Accessories	Qty
1	3.5 MHz Convex Probe	1
2	7.5 MHz Linear Probe	1

Optional_Accessories :

Sr.	Optional Accessories	Qty
1	5.0 MHz Micro-convex Probe	1
2	6.5 MHz Transvaginal Probe	1
3	7.5 MHz Endorectal Probe	1
