Overview

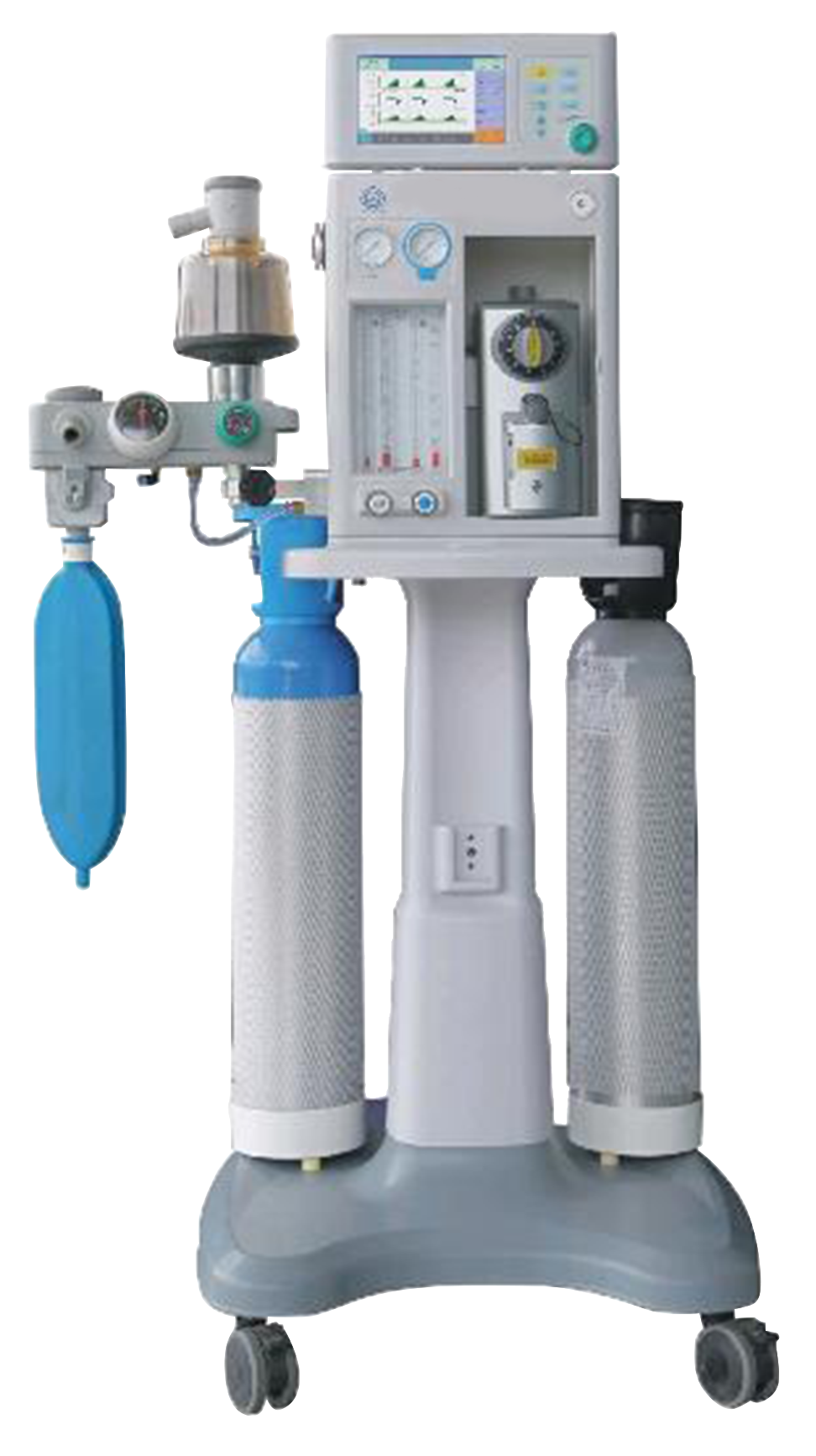

Anaesthesia System KAM-A100 is equipped with color LCD screen for clear display of trends, dosage rate and other setting parameters. Designed to suit adult as well as pediatric patients. System complies with closed, semi-closed, semi-open or assisted ventilation. Integrated sensors and valves ensure risk prevention from system failure and increases patient safety.

Specifications :

Drive	Electronically controlled, pneumatic driven
Tidal Volume	0 ml -1500 ml
Configuration	Trolley / Table-top ventilation
Gas Configuration	O2, N2O
Flow Meter	Four tubes [ 0.2 L/min ~ 10 L/min with interlock O2 valve ]
LCD Display	7 inch LCD
Vaporizer	(Maximum 2 mounts) Isoflurane/Enflurane/Sevoflurane/Halothane
Respiration range	1 bpm - 99 bpm (1 bpm - 40 bpm under SIMV)
Concentration Range	0 % – 5 % (Up to 8 % for Sevoflurane)
Calibration	Automatic
O2 Flush	25L/min – 75 L/min
Minute Volume	> 18 L/min
Hypoxic Safety System	O2 > 21%
Pressure Safety Valve	< 6 kPa
Volume of CO2 absorber	0.8 L
Power Supply	AC 220 V ± 10%, 50 Hz ± 2%
Working Condition	Operational temperature : 5°C ~ 40°C Operational humidity : < 80 %
Dimensions	500 x 460 x 320 mm
Weight	22 Kgs



Features :

• 7 inch color LCD display
• Pneumatic controlled flow
• Auto-calibration
• Suitable for adult as well as pediatric care
• ACG outlet (Optional)
• AG Scavenging system (Optional)
• Yoke system (Optional)
• Double vaporizer (Optional)

Applications :

Used in Surgical or Gynaecological departments to administer appropriate anaesthesia dosage at a specified rate to ensure effective sedation during surgeries and other invasive diagnostic or interventional procedures.
