Overview

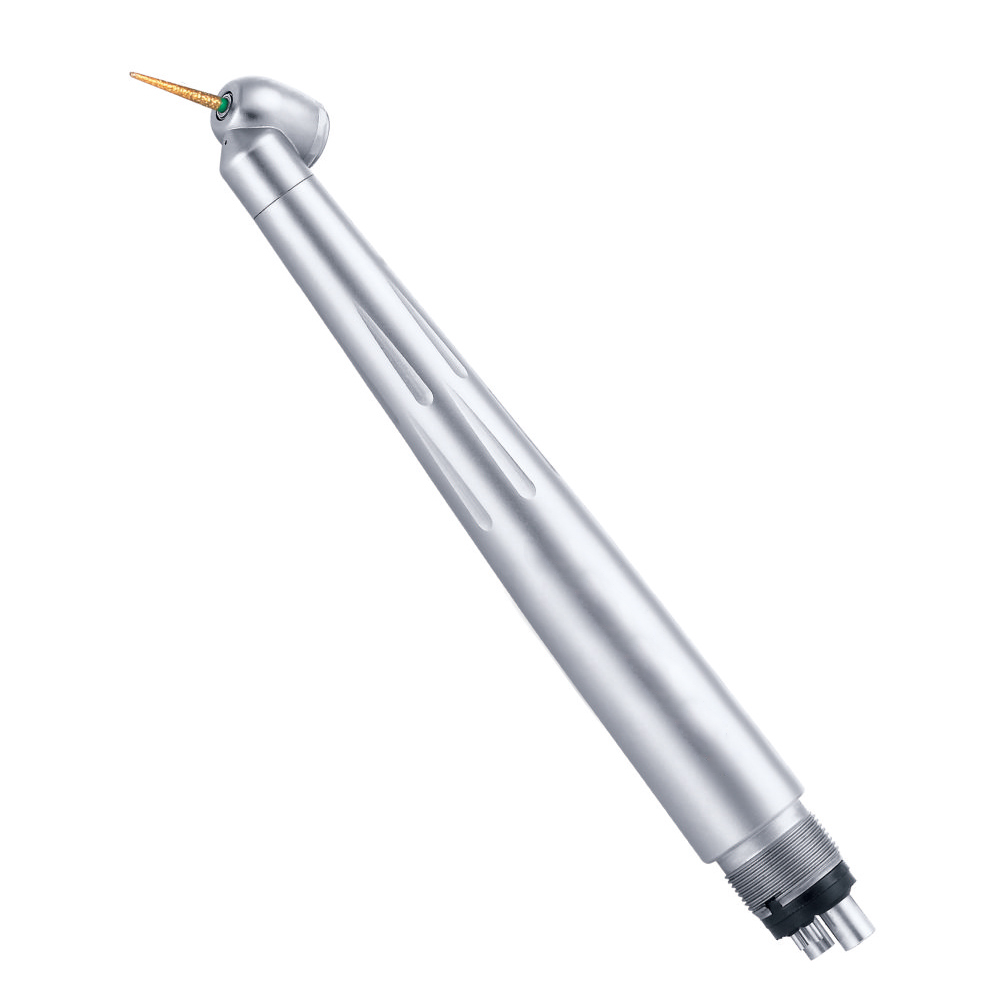

High-Speed Dental Hand piece KDH-B100 is a 45° angled air-driven dental drill instrument. Incorporated anti-retraction valve reduces water-drip and ceramic bearings allow high-end performance. Clean head design ensures contamination-free nozzle for effective infection-control.

Specifications :

Rotation Speed	3,50,000 rpm to 4,00,000 rpm
Bur Insertion	Standard Push button
Gear Ratio	1:1
Drive	Air driven
Type of Bearing	Ceramic
Air Pressure	0.23 MPa ~ 0.25 MPa
Water Pressure	0.2 MPa
Tubing Connection	2 or 4 holes
Construction	Stainless steel exterior
Applicable Bur Size	Diameter : 1.59 mm ~ 1.6 mm Length : 21 mm ~ 23 mm
Cartridge	Collet-type
Weight	Approx. 180 g



Features :

• Anti-retraction valve mechanism
• Enhanced grip control

Applications :

Used in dental clinics for preparation of tooth for various procedures primarily suitable for cavity preparation, removal of tooth structure, margin creation and finishing restorations.
