Overview

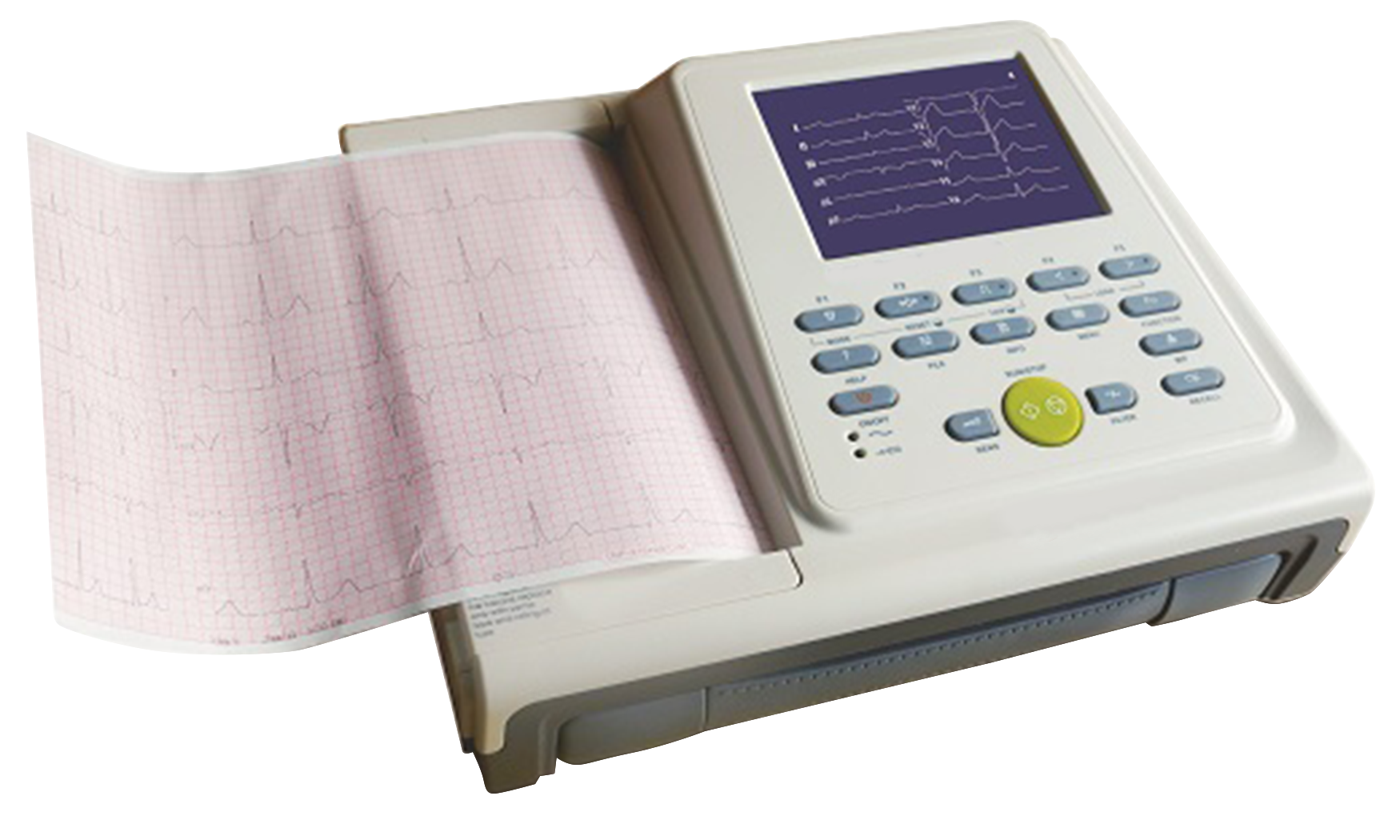

Twelve Channel ECG Machine KEC-C100 is equipped with high resolution 6” LCD auto-backlit color screen with 6º wide angle display. The system performs 12-lead ECG simultaneous acquisition with Auto, Manual and Analysis operational modes with multi-print facility. Equipped with digital filters for noise, baseline drift & muscle tremor to deliver accurate and systematic print results. Ergonomic soft keys with one touch operation.

Specifications :

LCD Display	6” Real-time display
Expandable Storage	Up to 1008 ECGs
Paper Speed	5 / 6.25 / 10 / 12.5 / 25 / 50 (mm/s)
Sensitivity	2.5, 5, 10, 20, 40 (mm/mV), Auto
Safety Standard	IEC Class I, Type CF
Acquisition Mode	12 lead parallel
Channel Display	12 CH
Input Circuit	Floating, protection against Defibrillator & Pacemaker
Input Circuit Current	≤ 50 nA
Input Impedance	≥ 50 MΩ
Depolarization Voltage	± 500 mV
A/D Converter	12 bit
Time Constant	>3.2 s
Frequency Response	0.05 Hz to 165 Hz
Built-in Storage	Up to 1008 ECGs
Connectivity	RS-232 port/ USB/Wireless (Optional)
Calibration Voltage	1 mV ± 2 %
Noise Level	< 15 µ Vp-p
Anti-Baseline Drift	Auto
EMG Filter	35 Hz ~ 45 Hz (- 3 dB)
ADS Filter	(0.15 Hz - 0.50Hz) Auto
HUM Filter	50 Hz/60 Hz (-20 dB)
CMRR	≥100 dB
Leakage Current	< 10 µA
Paper Width	210/216 mm
Power supply	AC: 110/240 V, 50/60 Hz DC: 19 V/3.5 A Battery: 14.4 V/4400 mAh
Built-in Battery	Rechargeable Lithium
Dimension	345 mm x 300 mm x 80 mm
Weight	3.5 Kgs



Features :

• 12-lead ECG simultaneous acquisition
• Selectable ECG report formats (Standard/Cabrera)
• Selectable modes (Auto/Man/Ana/Multi)
• PC based data management software
• 9 Export formats with print preview facility
• Digital filters eliminate noise, motion artifacts and prevent baseline drift
• Patient data storage expandability up to 1008 ECGs with SD card
• Alarms for lead-off and low battery conditions
• USB and RS232 connectivity with PC for data transfer

Applications :

Used in clinics, hospitals & emergency wards to diagnose and detect symptoms of various heart disease and arrhythmias, determine a patient’s response to drug therapy, and reveal trends or changes in heart function.
