Overview

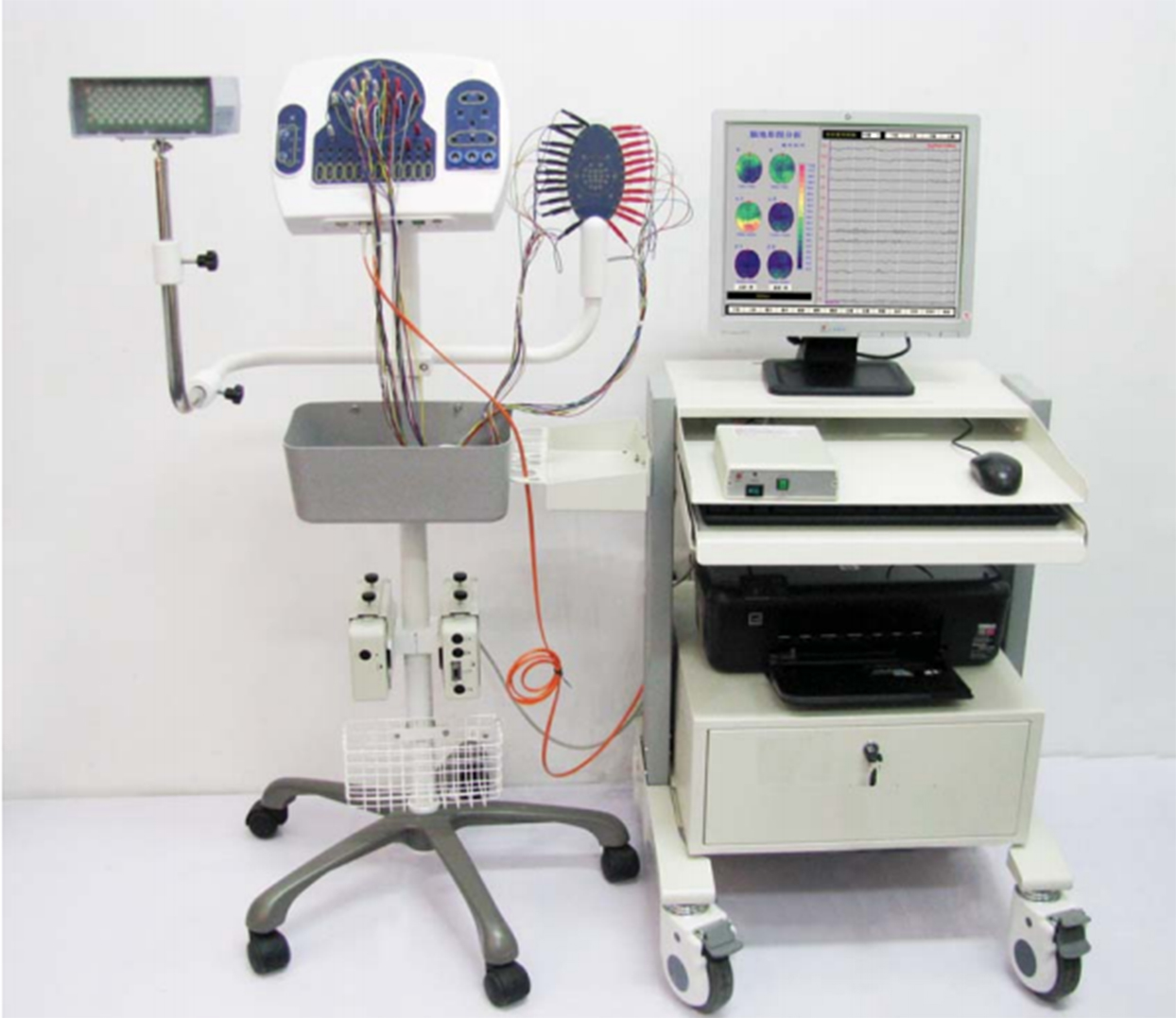

EEG Machine KEEG-A101 is a Professional EEG suitable for all standard applications of routine and long term EEG configurable in various set-ups. High quality real-time EEG signal acquisition and display. Compact, continuous monitoring device with USB connectivity for data transmission. Combined display of configuration chart and channel configuration source simplifies channel editing

Specifications :

Input channel	32/64/128 channels Monopolar EEG
Recording modes	Real-time
Sampling Rate	128, 256, 512, 1024, 2048, 4096, 8192 Hz
Evoke Stimulator	A/V Simulator/ Video Signal, Current Stimulator
A/ Converter	24 bit
Electrodes	All-in-one monitoring electrode cap
Data format	EDF or TXT format
USB Interface	USB 2.0/ USB 1.1 (HDMI Interface)
Hours of operation	72 hours continuous operation
Calibration	Built-in impedance testing function and automatic calibration
Input impedance	≥10 MOhm
Low-pass filter	1 Hz ~ 120 Hz
High-pass filter (Time)	0.01s - 0.3s
CMRR	≥100 dB
Noise	≤0.5 uVRMS
Operative Temperature	±10 °C ~ +50 °C
Operative Humidity	30% ~ 80%
Power supply	(External) AC 100～240 V/ DC – 19 V (Internal) Rechargeable lithium battery(16.8v)
Dimensions	510 x 450 x 230 mm
Weight	11 Kg



Features :

• All-in-one monitoring electrode cap
• Real-time monitoring
• Accurate readings and printable waveforms
• Configuration: ERP with A/V stimulator & synchronized video monitoring (Optional)
• Connectivity : USB

Applications :

Used in sleep clinics, psychiatric wards and neurology departments to monitor seizure disorders, evaluate patient’s cognitive states, identify lesion sites and study the effect of drugs and psychological treatment.

Standard_Accessories :

Sr	Standard Accessories	Qty
1	All-in-one Electrode cap	1
2	All-in-one cup electrode cable	1
3	All-in-one bracket electrode cable	1

Optional_Accessories :

Sr	Optional Accessories	Qty
1	Flash Stimulator	1
2	Photic stimulator	1
3	HD Video system	1
4	Mountable trolley	1
