Overview

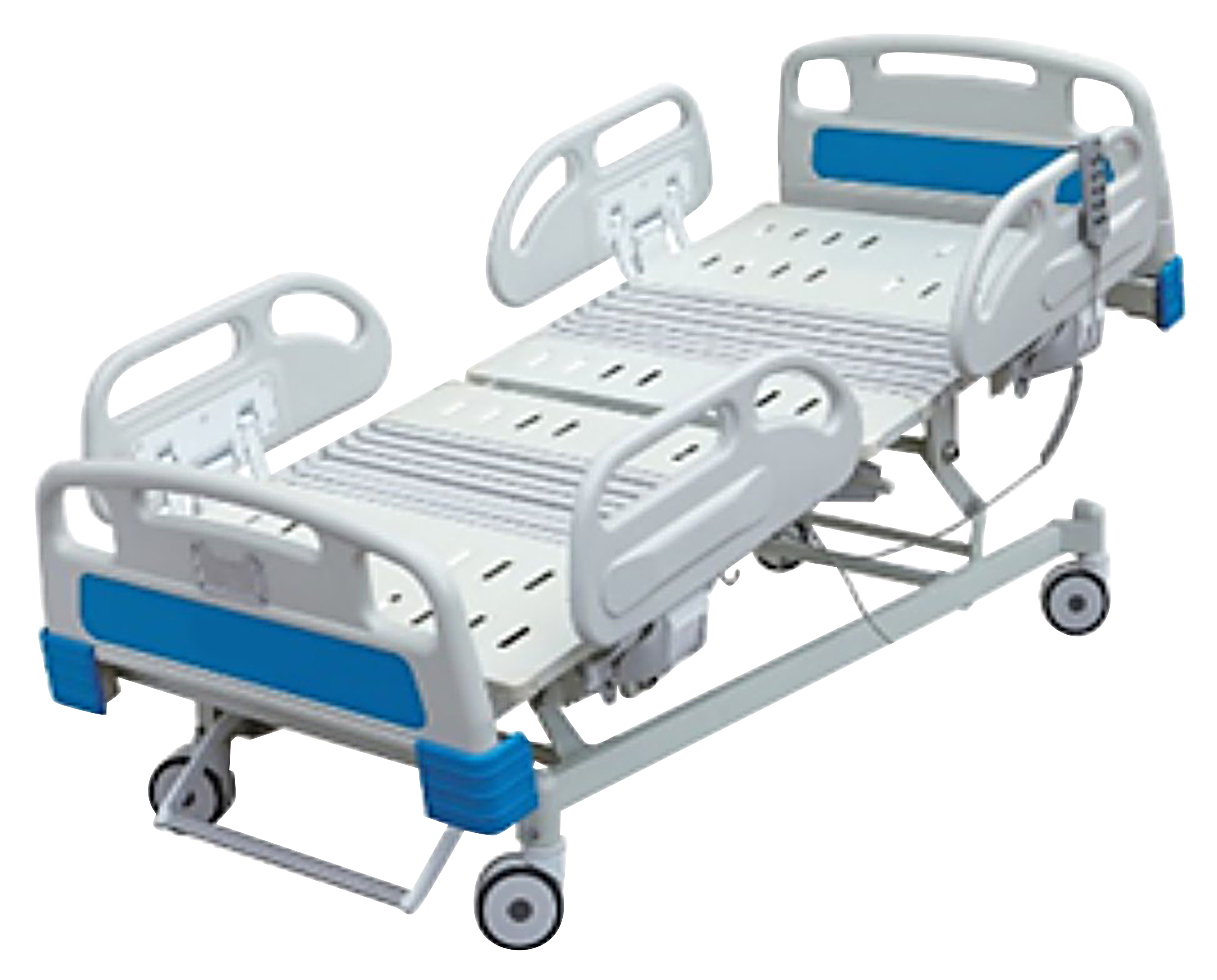

Hospital bed KHB-A404 is an electrically controlled ICU bed with drop-down side-panels along with touch keypad for convenient patient access. Specialized motors enable patient positioning at various angular bed configurations for back-rest and knee-rest positions. Equipped with advanced medical motors, attendant control panel (ACP) and intelligent patient positioning system for enhanced patient care at minimal effort.

Specifications :

Height adjustability	500 mm - 700 mm
Back-rest angle	0° - 80° (±5°)
Knee-rest angle	0° - 40° (±5°)
Trendelenburg angle	0° - 12°
Reverse Trendelenburg angle	0° - 12°
Construction	Electrostatic powder coated S.S. tube frame with ABS head and foot board
Load capacity	250 Kgs
User interface	Touch-key panel
Other components	Urine hooks, I.V drip, heavy duty castors
System functions	Reset, centrally-controlled brakes,
Dimensions	2120 x 970 x 700 mm
Weight	125 Kgs



Features :

• 5 functional bed inclinations (Fowler/PLR/Trendelenburg variations)
• Bed-board with flexible connection
• Advanced medical motor system
• Steel frame with ABS head and foot board
• Built-in Touch-key control

Applications :

Used in hospital wards, primary healthcare facilities and nursing homes with specialized functions dedicated for specific wards such as general ward, nursing, orthopedic, burns, ICU, etc. designed to be adjustable at various inclinations, heights for increased comfort and well-being of the patient.

Standard_Accessories :

Sr.	Standard	Qty
1	I.V. poles	1
2	Urine bag hook	1
