Overview

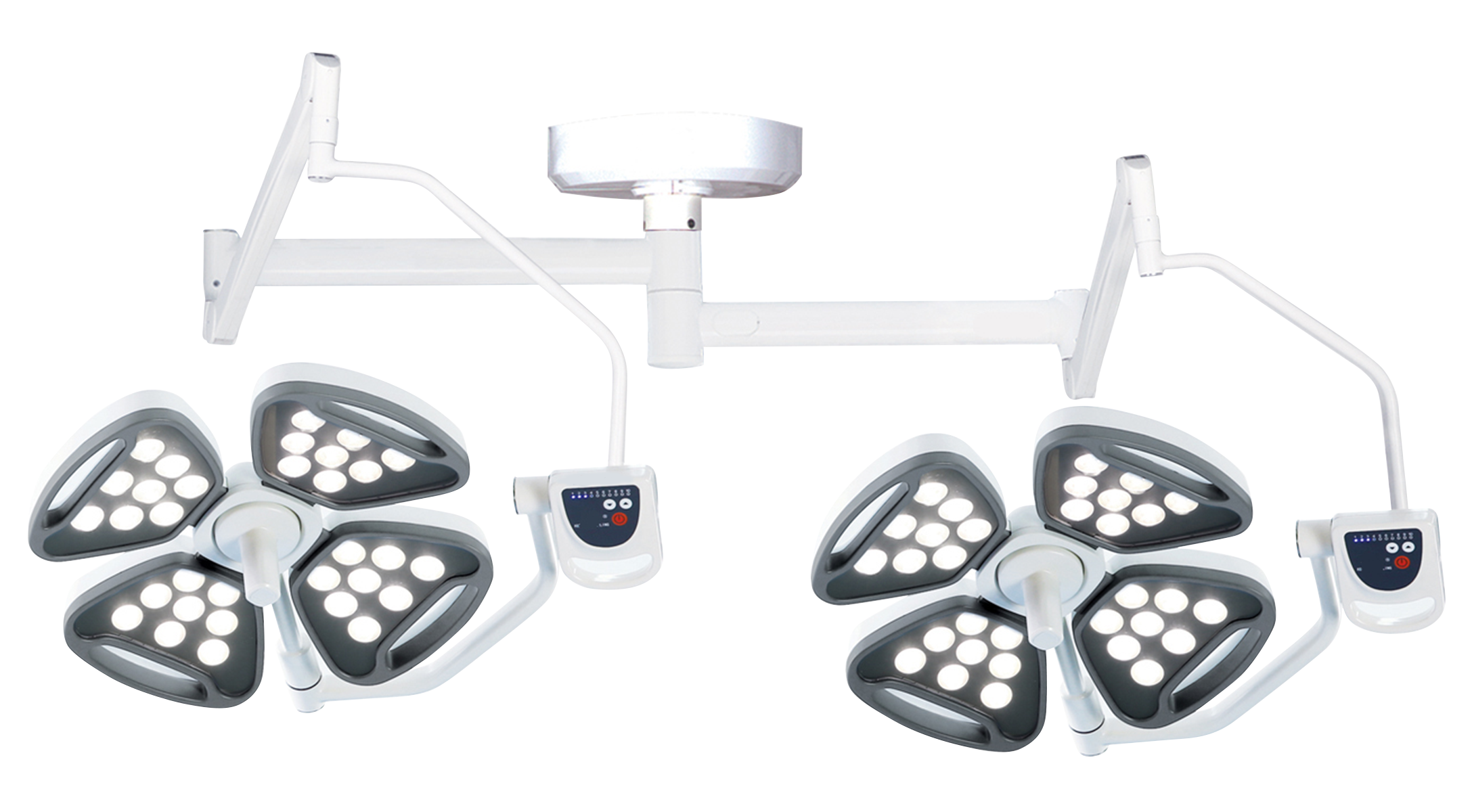

KOL-A401 is shadow less operating light featuring LED cold light with ultrathin optical lenses suitable for surgical procedures. Digital step less regulated LED brightness and handle is adjustable to alter the light field size. Wall mounted with minimum height for installation of 2800 mm to 3200 mm.

Specifications :

Light head	Combined type
Illumination capacity	40000 lux ⁓ 100000 lux / 40000 lux ⁓ 100000 lux
Combined light depth of illumination	150 mm
Power input	180 VA
Light field diameter	100 mm to 280 mm
No. of LED bulbs	32 / 32
Optional Color temperature	(3500 / 4000 / 4500) ±500K
Diameter of spot D50	110 ± 35 mm
D10	180 ± 40 mm
Minimum height of installation	280 to 320 mm
Heat to light ratio	< 6
Operating distance	700 ⁓ 1400 mm
Average bulb life	50000hr.
Power supply	100 / 240 V 50 / 60 Hz
Color rendering index (Ra)	100 ≥ Ra ≥ 85



Features :

• Light source : LED cold light
• Removable handle sheath
• Long life LED lamp
• Adapts switch power supply control voltage
• Spring arm for lamp head adjustment

Applications :

Used in hospitals as medical exam light, operating room lights.
