Overview

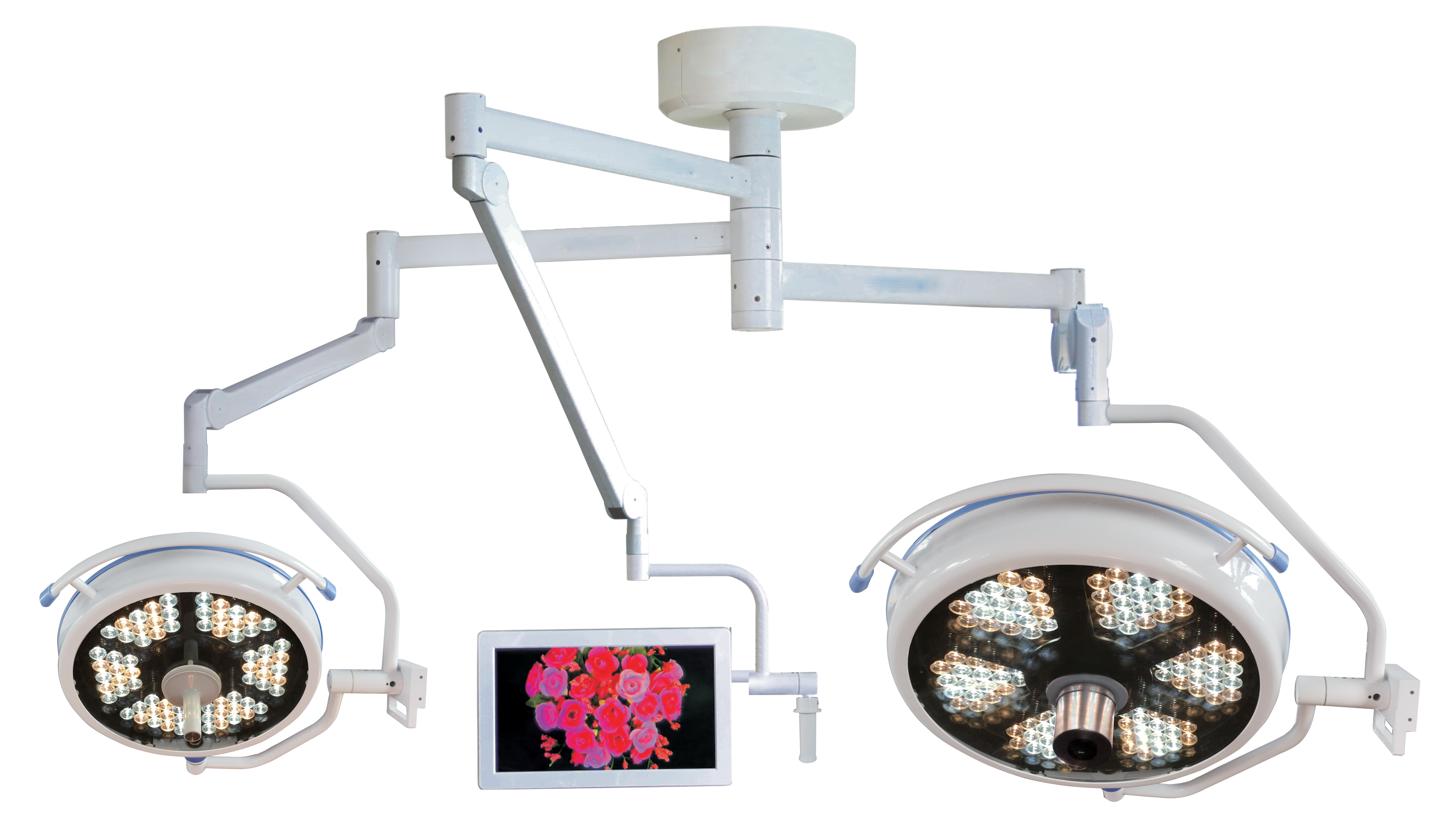

KOL-A500 is shadow less operating light featuring LED cold light with ultrathin optical lenses suitable for surgical procedures. Digital step less regulated LED brightness and handle adjusted to alter light field size. Wall mounted with minimum height of 3100 mm for installation. Incorporates video system for easy visualization of entire process.

Specifications :

Rated illumination	100,000 lux ⁓160,000 lux / 80,000 lux ⁓ 130,000 lux
Camera shooting distance	80 to 200 mm
Foci (F3)	66 to 91.36 mm
Power input	140 VA
Bulb power	3.2 V ; 1 W
Cross arm rotation	360 °
Lamp body turn	360 °
Color temperature	3800 ± 200 K / 4400 ± 200 K / 5000 ± 200 K
Video system specification	12 V (DC) ± 10 %
Lowest height of installation	3100 mm
Main fuse	250 V



Features :

• Light source : LED
• Configured with video system
• Cross arm rotate around fixed seat
• Lamp body turns around riser
• Quick acting main fuse for safety

Applications :

Used in hospitals as medical exam light, operating room lights.
