Overview

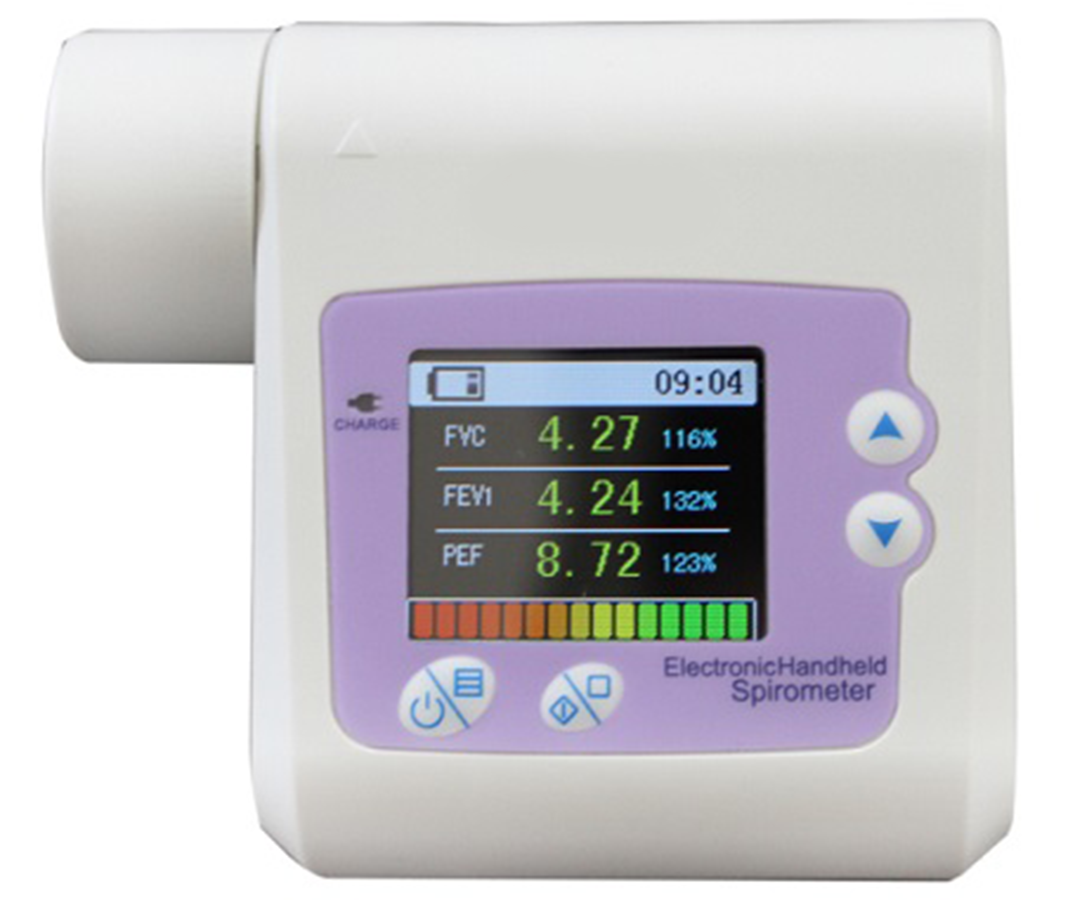

KSPM-A100 is a hand held unit which can be used in two different ways (connectible to PC through USB or the unit itself as a desktop) to meet user’s requirements. It features a large TFT screen to display measured FVC, FEV and PEF values. It displays volume and flow rate charts to support diagnosis. Automated unit shut down in case of no user operation.

Specifications :

Flow range	1 L/s ⁓ 16 L/s
Volume range	10 L
Flow accuracy	± 10 %
Volume Accuracy	± 3 %
Trend	Flow rate – Volume Volume – time
Measure mode	Infrared
Measures	FVC - Forced Vital Capacity FEV - Forced Expired Volume in one second PEF - Peak expiratory flow
Operating environment	Temperature: +10 °C ~ +40 °C Relative humidity: ≤80 % Atmospheric pressure: 70 kPa~106 kPa
Storage environment	Temperature: -40 °C ~ +55 °C Relative humidity: ≤ 95 % Atmospheric pressure: 50 kPa~106 kPa
Working Current	60 mA
Battery	DC 3.7 V ; 820 mAh
Dimension	97 × 89 × 36 mm
Weight	150 g



Features :

• Portable ultra-thin model
• TFT screen displays clear test result
• Respondant’s current condition is displayed by red, yellow and green bar
• Repeated measurement of pre analyzed data
• Provision of memorizing data
• Connectable to PC through USB cable
• Rechargeable lithium battery

Applications :

Used to check lung conditions to diagnose chronic respiratory diseases. Applicable for routine analysis in hospital, clinics.
